L3 Managed Gigabit/10G Stackable Switch

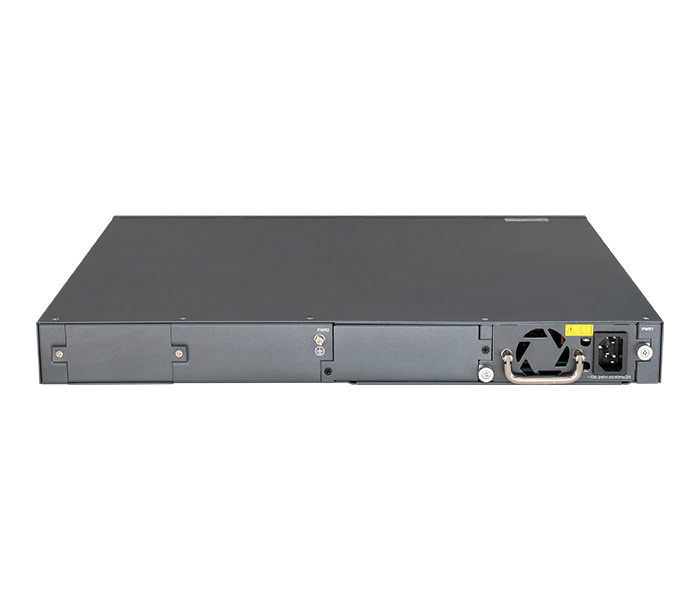

S3900 Switching family comes with advanced functionality and first-rate performance,6 x 10G uplink ports and a broad range of downlink options along with dual hot-swap power supplies

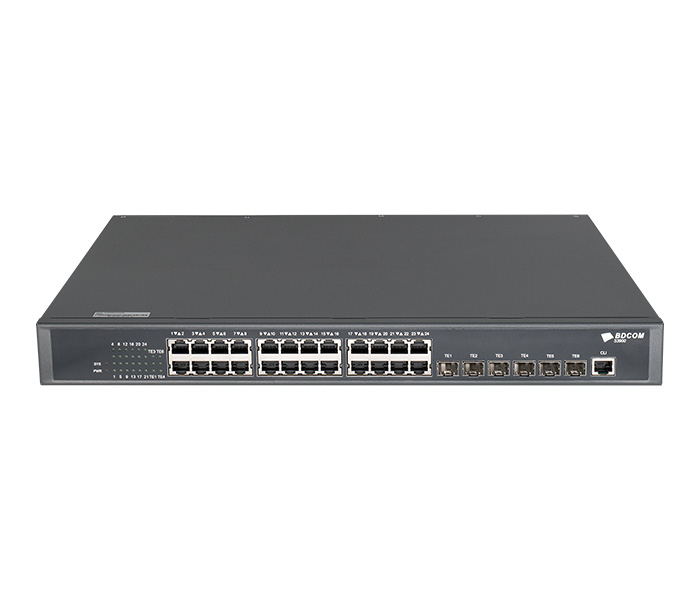

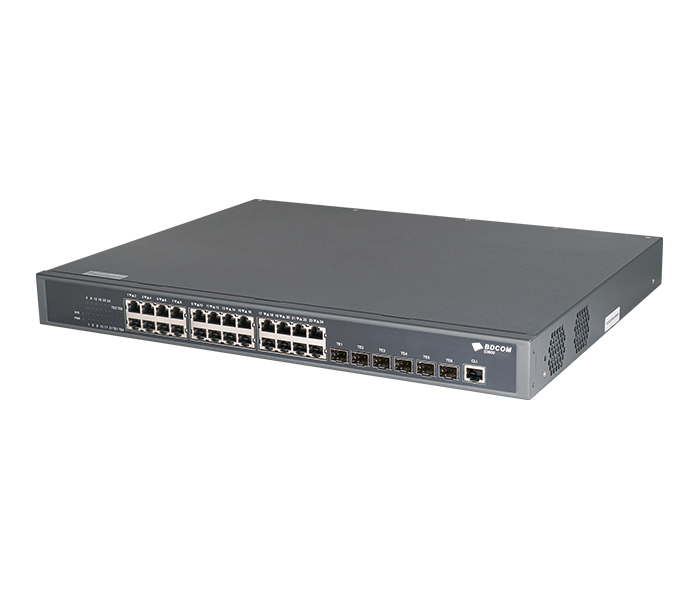

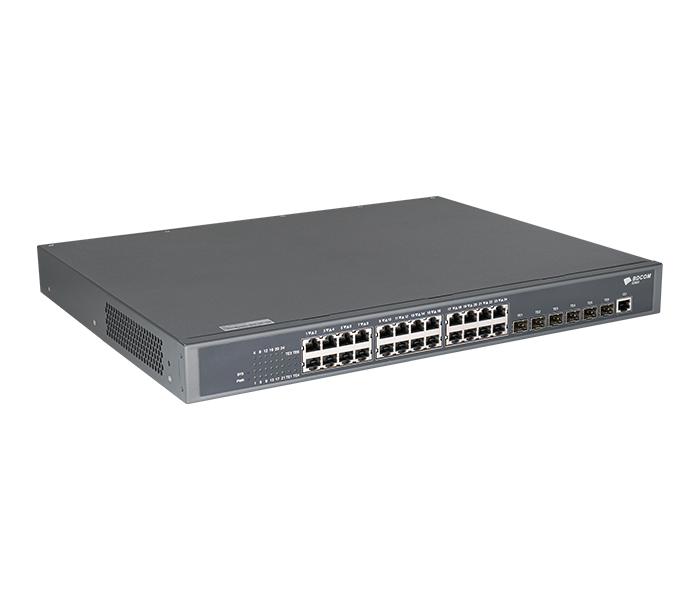

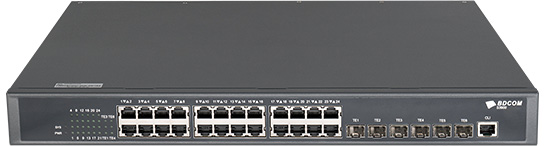

S3900-24T6X

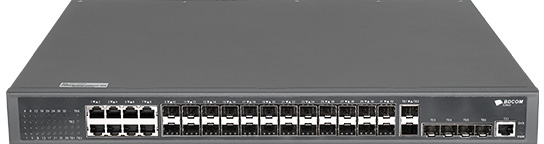

S3900-24S8T6X

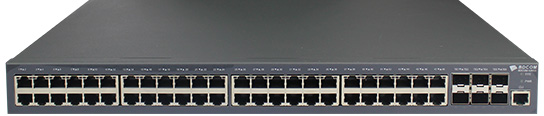

S3900-48T6X

S3900-48M6X

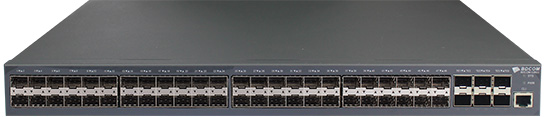

S3900-48S6X

Highlight Features

Carrier-Level QoS Policies

Varied Service Characteristics

Versatile IPv6 Solution

Industrial Ethernet Ring with Zero Delay and Zero Packet Loss

Complete Security Mechanism

Innovative Energy-Saving Design

Flexible and Convenient Management and Maintenance

consult

Technical Parameter

S3900-24T6X S3900-24S8T6X S3900-48T6X S3900-48M6X S3900-48S6X

Gigabit Interface
RJ45	24
SFP	/
10G/GE Interface	6
Console（RJ45）	1
Backplane（Gbps）	216
Forwarding rate（Mpps）	126
Chassis Dimensions (WxDxH)(mm)	440x350x44
Package Dimensions (WxDxH)(mm)	576x448x94
Power supply (hot-swap) AC: 100V-240V 50Hz±10%	75W
Total output BTU (1000BTU/H=293W)	255.97
Noise@25°C（dBA)	45
MTBF(H)	>200,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	512
MAC	32K
Buffer size(MB)	2
Jumbo frame	9K
Routing table
IPv4	12K
IPv6	6K
ARP table
IPv4	12K
IPv6	2K
Total SVI	1K

Gigabit Interface
RJ45	8
SFP	24
10G/GE Interface	6
Console（RJ45）	1
Backplane（Gbps）	216
Forwarding rate（Mpps）	138
Chassis Dimensions (WxDxH)(mm)	440x350x44
Package Dimensions (WxDxH)(mm)	576x448x94
Power supply (hot-swap) AC: 100V-240V 50Hz±10%	75W
Total output BTU (1000BTU/H=293W)	255.97
Noise@25°C（dBA)	45
MTBF(H)	>200,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	512
MAC	32K
Buffer size(MB)	2
Jumbo frame	9K
Routing table
IPv4	12K
IPv6	6K
ARP table
IPv4	12K
IPv6	2K
Total SVI	1K

Gigabit Interface
RJ45	48
SFP	/
10G/GE Interface	6
Console（RJ45）	1
Backplane（Gbps）	216
Forwarding rate（Mpps）	162
Chassis Dimensions (WxDxH)(mm)	440x350x44
Package Dimensions (WxDxH)(mm)	576x448x94
Power supply (hot-swap) AC: 100V-240V 50Hz±10%	75W
Total output BTU (1000BTU/H=293W)	255.97
Noise@25°C（dBA)	45
MTBF(H)	>200,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	512
MAC	32K
Buffer size(MB)	2
Jumbo frame	9K
Routing table
IPv4	12K
IPv6	6K
ARP table
IPv4	12K
IPv6	2K
Total SVI	1K

Gigabit Interface
RJ45	24
SFP	24
10G/GE Interface	6
Console（RJ45	1
Backplane（Gbps）	216
Forwarding rate（Mpps	162
Chassis Dimensions (WxDxH)(mm)	440x350x44
Package Dimensions (WxDxH)(mm)	576x448x94
Power supply (hot-swap) AC: 100V-240V 50Hz±10%	75W
Total output BTU (1000BTU/H=293W)	255.97
Noise@25°C（dBA)	45
MTBF(H)	>200,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	512
MAC	32K
Buffer size(MB)	2
Jumbo frame	9K
Routing table
IPv4	12K
IPv6	6K
ARP table
IPv4	12K
IPv6	2K
Total SVI	1K

Gigabit Interface
RJ45	/
SFP	48
10G/GE Interface	6
Console（RJ45）	1
Backplane（Gbps）	216
Forwarding rate（Mpps）	162
Chassis Dimensions (WxDxH)(mm)	440x350x44
Package Dimensions (WxDxH)(mm)	576x448x94
Power supply (hot-swap) AC: 100V-240V 50Hz±10%	150W
Total output BTU (1000BTU/H=293W)	511.94
Noise@25°C（dBA)	45
MTBF(H)	>200,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	512
MAC	32K
Buffer size(MB)	2
Jumbo frame	9K
Routing table
IPv4	12K
IPv6	6K
ARP table
IPv4	12K
IPv6	2K
Total SVI	1K

Features

Ordering Information

S3900 Series switch
S3900-24T6X	24-Port Gigabit RJ45 + 4-Port 10G/GE SFP+ 2-Port 10G dedicated stacking SFP+ L3 Stackable Managed Switch (2 power slots, single hot-swap AC-220V power supply, with cooling fan, 1U, 19-inch rack-mounted installation)
S3900-24S8T6X	24-Port Gigabit SFP + 8-Port Gigabit RJ45 + 4-Port 10G/GE SFP+ 2-Port 10G dedicated stacking SFP+ L3 Stackable Managed Switch (2 power slots, single hotswap AC-220V power supply, with cooling fan, 1U, 19-inch rack-mounted installation)
S3900-48T6X	48-Port Gigabit RJ45 + 4-Port 10G/GE SFP+ 2-Port 10G dedicated stacking SFP+ L3 Stackable Managed Switch (2 power slots, single hot-swap AC-220V power supply, with cooling fan, 1U, 19-inch rack-mounted installation)
S3900-48M6X	24-Port Gigabit RJ45 + 24-Port Gigabit SFP + 4-Port 10G/GE SFP+ 2-Port 10G dedicated stacking SFP+ L3 Stackable Managed Switch (2 power slots, single hotswap AC-220V power supply, with cooling fan, 1U, 19-inch rack-mounted installation)
S3900-48S6X	48-Port Gigabit SFP + 4-Port 10G/GE SFP+ 2-Port 10G dedicated stacking SFP+ L3 Stackable Managed Switch ( 2 power slots, single AC-220V hot-swap power supply, with cooling fan, 1U, standard 19 inch rack-mounted installation)
