>Products>Switch

Unmanaged 100M PoE+ Switch

BDCOM S1000-P series is plug-&-play small box for CCTV network with first-rate quality and stability

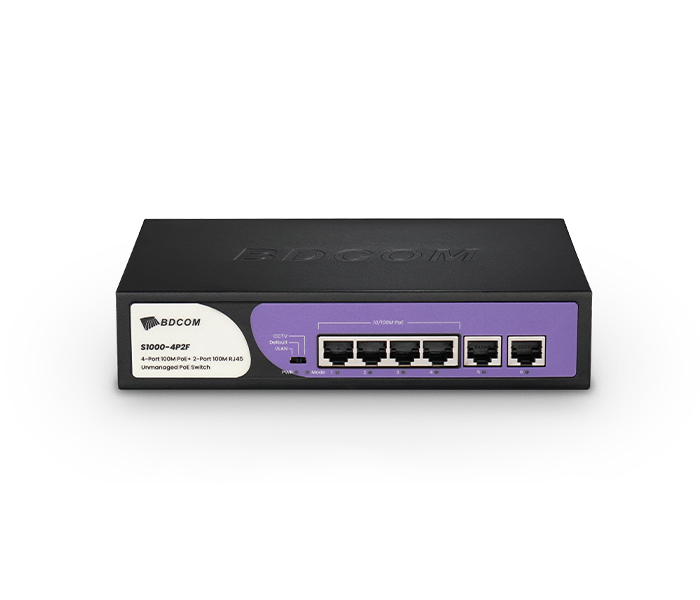

S1000-4P2F

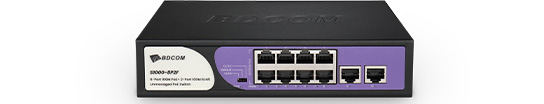

S1000-8P2F

Highlight Features

Non-blocking switching architecture, and line-speed forwarding of all ports

Large buffer design, ensures smooth playback of high-definition videos

Plug and play

consult

Technical Parameter

S1000-4P2F S1000-8P2F

Switching capacity	1.2Gbps
MAC	1K
Buffer size	448Kb
PoE Port	PoE Port
Uplink RJ45	2 100M
Dimensions (mm)	200x118x44
PoE budget	≤60W
PoE standard	802.3af/at, maximum output of 30W per port
Power supply	Built-in AC: 100~240V, 50/60Hz
Working mode	VLAN mode, Default mode, CCTV mode
Environment requirements	Operating temperature/humidity: 0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C -70°C, 5%-95% non-condensing
Fan	Fanless
Lightning protection	6KV

Switching capacity	2Gbps
MAC	2K
Buffer size	448Kb
PoE Port	8 100M
Uplink RJ45	2 100M
Dimensions (mm)	200x118x44
PoE budget	≤90W
PoE standard	802.3af/at, maximum output of 30W per port
Power supply	Built-in AC: 100~240V, 50/60Hz
Working mode	VLAN mode, Default mode, CCTV mode.
Environment requirements	Operating temperature/humidity: 0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C -70°C, 5%-95% non-condensing
Fan	Fanless
Lightning protection	6KV

Features

Ordering Information

S1000-P Series
S1000-4P2F	4-Port 100M PoE+ 2-Port 100M RJ45 Unmanaged PoE Switch, DIP function, built-in AC220V power supply, PoE budget 60W, desk-top installation
S1000-8P2F	8-Port 100M PoE+ 2-Port 100M RJ45 Unmanaged PoE Switch, DIP function, built-in AC220V power supply, PoE budget 90W, desk-top installation
