>Products>Switch

Unmanaged 100M/1000M PoE+ Switch

BDCOM S1200-P series is no-brainer design for CCTV plug-&-play network with top-class hardware reliability

S1200-8P2G

S1200-16P2G1S

S1200-24P2G1S

S1200-24P2G1S-370

Highlight Features

Non-blocking switching architecture, and line-speed forwarding of all ports

High-power PoE power supply, supporting full load 802.3af on all ports

consult

Technical Parameter

S1200-8P2G S1200-16P2G1S S1200-24P2G1S S1200-24P2G1S-370

Switching capacity	5.6Gbps
MAC	2K
Buffer size	448Kb
PoE Port	8 100M
Uplink RJ45	2 Gigabit
Dimensions (mm)	200x118x44
PoE budget	≤90W
PoE standard	802.3af/at, maximum output of 30W per port
Power supply	Built-in AC: 100~240V, 50/60Hz
Working mode	VLAN mode, Default mode, CCTV mode
Environment requirements	perating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing
Fan	Fanless
Lightning protection	6KV

Switching capacity	9.2Gbps
MAC	2K
Buffer size	1.5Mb
PoE Port	16 100M
Uplink RJ45	2 Gigabit
Uplink SFP	1 Gigabit
Dimensions (mm)	320x207x44
PoE budget	≤180W
PoE standard	802.3af/at, maximum output of 30W per port
Power supply	Built-in AC: 100~240V, 50/60Hz
Working mode	VLAN mode, Default mode, CCTV mode
Environment requirements	perating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing
Fan	Fanless
Lightning protection	6KV

Switching capacity	10.8Gbps
MAC	2K
Buffer size	1.5Mb
PoE Port	24 100M
Uplink RJ45	2 Gigabit
Uplink SFP	1 Gigabit
Dimensions (mm)	320x207x44
PoE budget	≤280W
PoE budget	≤280W
PoE standard	802.3af/at, maximum output of 30W per port
Power supply	Built-in AC: 100~240V, 50/60Hz
Working mode	VLAN mode, Default mode, CCTV mode
Environment requirements	perating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing
Fan	Fanless
Lightning protection	6KV

Switching capacity	10.8Gbps
MAC	2K
Buffer size	1.5Mb
PoE Port	24 100M
Uplink RJ45	2 Gigabit
Uplink SFP	1 Gigabit
Dimensions (mm)	440x205x44
PoE budget	≤370W
PoE standard	802.3af/at, maximum output of 30W per port
Power supply	Built-in AC: 100~240V, 50/60Hz
Working mode	VLAN mode, Default mode, CCTV mode
Environment requirements	perating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing
Fan	Fanless
Lightning protection	6KV

Features

Ordering Information

S1200-P Series

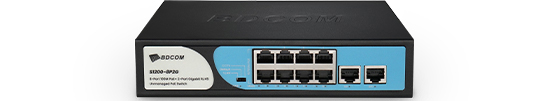

S1200-8P2G	8-Port 100M PoE+ 2-Port Gigabit RJ45 Unmanaged PoE Switch, DIP function, built-in AC 220V power supply; PoE budget 90W, desktop/rack-mounted installation.

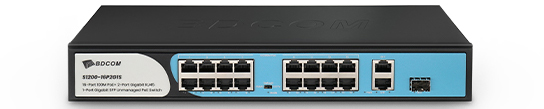

S1200-16P2G1S	16-Port 100M PoE+ 2-Port Gigabit RJ45 + 1-Port Gigabit SFP Unmanaged PoE Switch, DIP function, built-in AC 220V power supply; PoE budget 180W, rack-mounted installation.

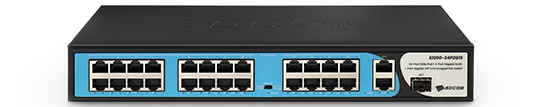

S1200-24P2G1S	24-Port 100M PoE+ 2-Port Gigabit RJ45 + 1-Port Gigabit SFP Unmanaged PoE Switch, DIP function, built-in AC 220V power supply; PoE budget 280W, rack-mounted installation.

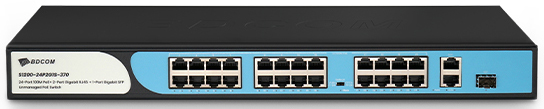

S1200-24P2G1S-370	24-Port 100M PoE+ 2-Port Gigabit RJ45 + 1-Port Gigabit SFP Unmanaged PoE Switch, DIP function, built-in AC 220V power supply; PoE budget 370W, rack-mounted installation.
