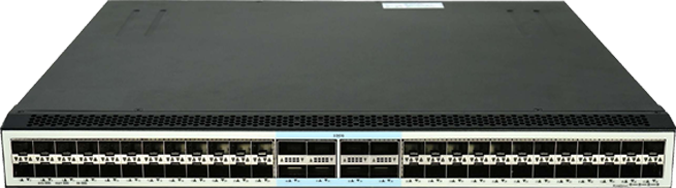

New generation high-performance data center full Gigabit TOR switch

4K VLAN IDs

GVRP

1:1 and N:1 VLAN Mapping

QinQ and selective QinQ

 Private VLAN

Manually configuring VxLAN tunnel

VxLAN distributed gateway

VxLAN dual-active link access

VxLAN interconnection across data centers

VxLAN pass-through of L2 Protocol packets

Supports modification of VxLAN outer header DSCP

BGP EVPN

Supports overlay split horizon, and separate control on different VNIs

IGMP v1/v2c/v3

IGMP Snooping

IGMP Fast Leave

Multicast group policy and multicast number limit

MVR

PIM-SM, PIM-DM

Static routing, RIP v1/v2, OSPF, BGP, IS-IS, BEIGRP

Policy Based Routing(PBR)

ECMP

BFD for OSPF, BGP

ICMPv6, DHCPv6, ACLv6 and IPv6 Telnet

IPv6 neighbor discovery

Path MTU discovery

MLD v1/v2

MLD snooping

IPv6 Static Routing, RIPng, OSPFv3, BGP4+

Manual tunnel, ISATAP tunnel, 6-to-4 tunnel

MPLS Forwarding

MCE

MPLS OAM

MPLS Stats

L2VPN

L3VPN

Traffic classification based on fields in L2/L3/L4 protocol headers

Committed Access Rate (CAR) traffic restriction

Re-marking of 802.1P/DSCP priority

Multiple queuing algorithms such as SP, WRR or SP+WRR

Congestion avoidance mechanisms like Tail-Drop and WRED

Traffic supervision and traffic shaping

Ingress and Egress ACL, supports matching L2, L3, L4 and IP quintuples, and performs replication, forwarding and discarding

Hash-based load balancing algorithm to ensure session integrity

L2~L4 ACL flow identification and filtering security mechanism

DDoS attack prevention, TCPSYN/UDP Flood attack prevention

Suppression of multicast, broadcast, and unknown unicast packets

Port isolation Port Security, IP+MAC+port binding

DHCP Snooping, DHCP Option 82

IEEE 802.1x authentication

Radius, BDTacacs+

URPF

Command line hierarchical protection

Power 1+1 backup

Static/LACP link aggregation

EAPS, ERPS

HSRP, VRRP

GR for OSPF and BGP

BFD for OSPF and BGP

ISSU

Console, Telnet, SSH 2.0

Zero Touch Provisioning (ZTP)

Web-GUI

SNMP v1/v2c/v3

Upload and download of FTP/TFTP/SFTP files

RMON event history

Traffic statistical analysis such as sFLOW

IEEE 802.3az

MLAG basic functions

MLAG one-arm functions

Static configuration and dynamic MAC learning

MAC browsing and removal

Configurable aging time of the MAC address

Limited number of learnable MAC addresses

MAC filtration

Black-hole MAC list

IEEE 802.1AE MacSec

802.1d STP, 802.1w RSTP, 802.1s MSTP

BPDU protection, root protection and ring protection

Operating temperature/humidity: -10°C-50°C; 10%-90%noncondensing

Storage temperature/humidity: -20°C -70°C; 5%-95% noncondensing
