Managed L2+ Full Gigabit PoE+ Industrial Switch

IES200-V25-P series, based on a new generation of high-performance hardware and BDROS platform of BDCOM's independent intellectual property rights, supports ACL, QinQ, QoS and static routing.

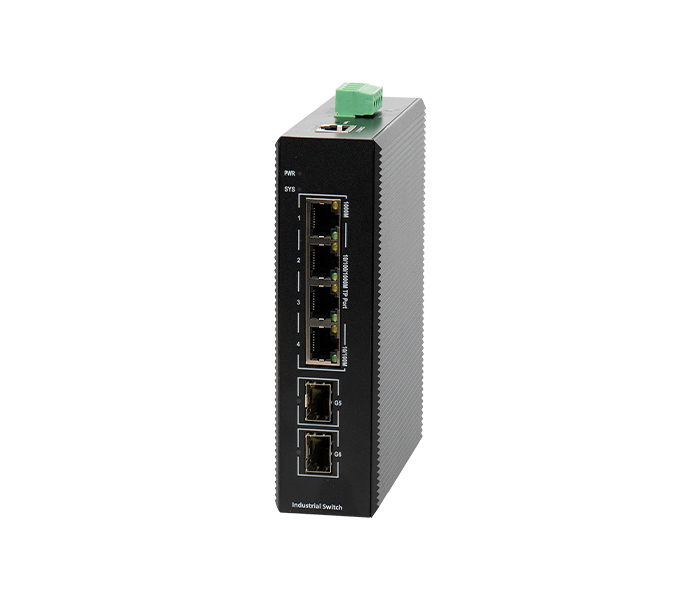

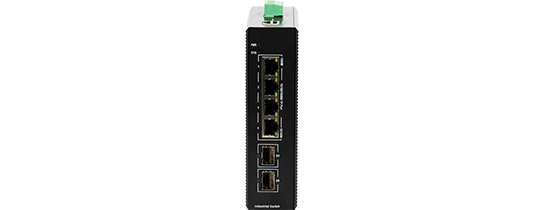

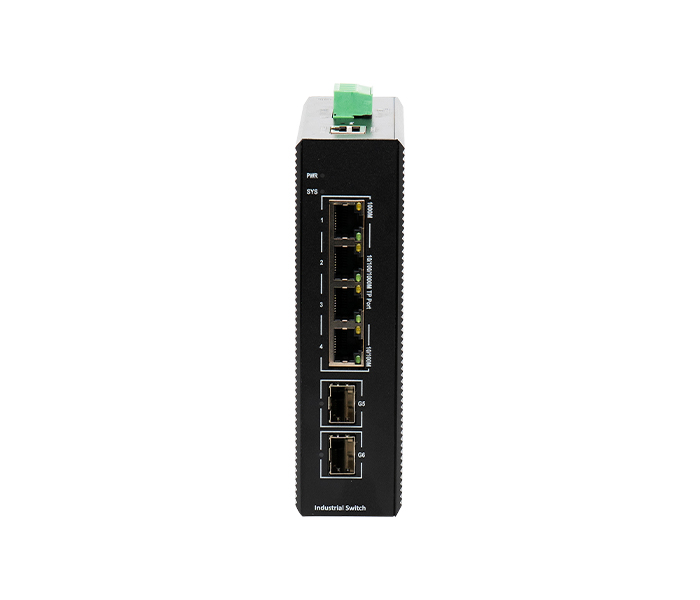

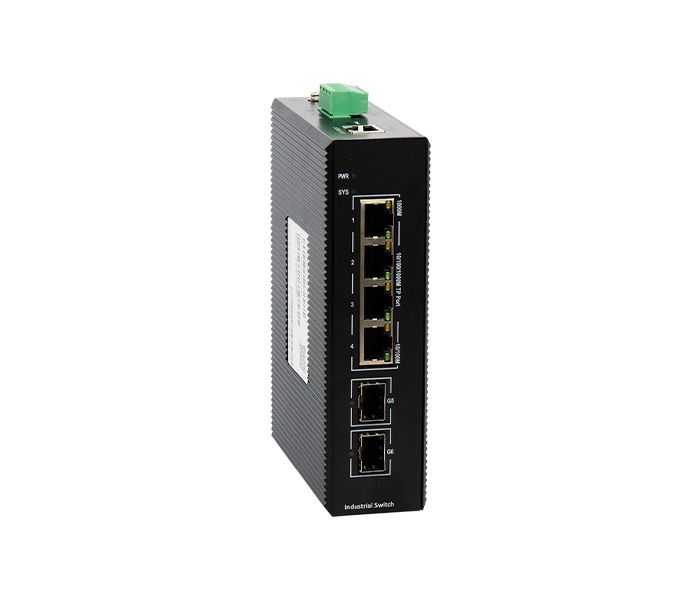

IES200-V25-2S4P

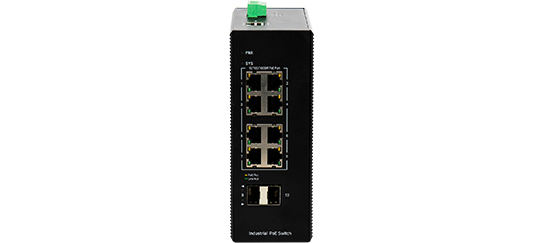

IES200-V25-4S8P

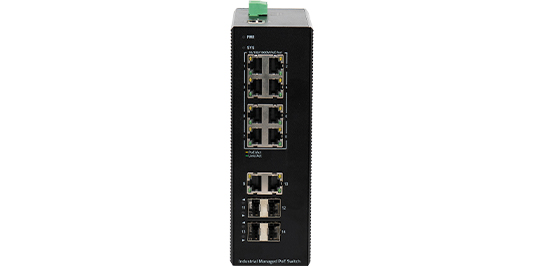

IES200-V25-4S2T8P

Highlight Features

Advanced equipment architecture and industry-leading port density with IP40 protection and 6KV lightning protection

consult

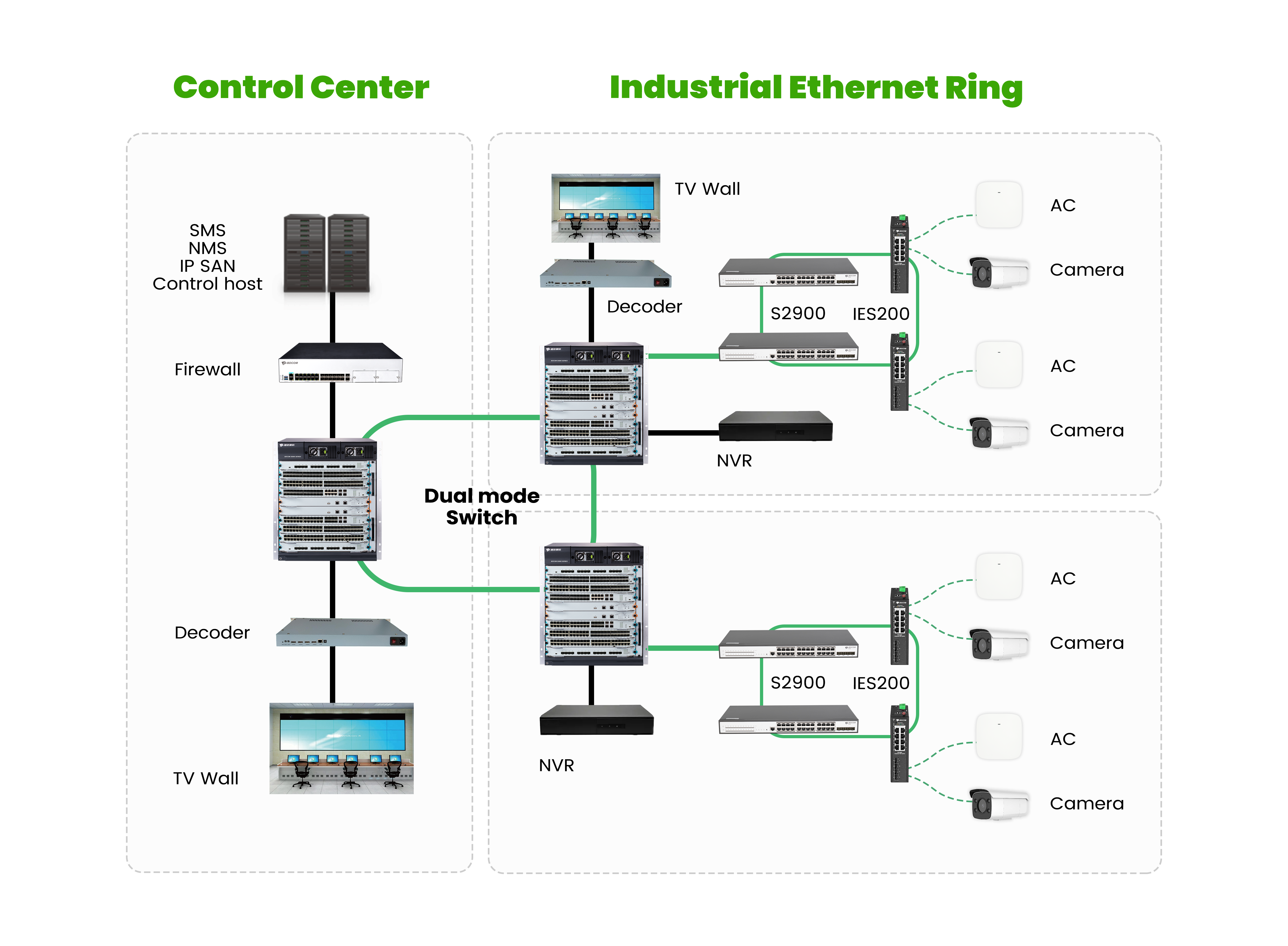

Typical Application

Technical Parameter

IES200-V25-2S4P IES200-V25-2S8P IES200-V25-4S2T8P

Gigabit Interface
RJ45	4 PoE+
SFP	2
Console (RJ45)	1
Switch Capacity / Backplane (Gbps)	56
Forwarding rate (Mpps)	9
Chassis
Dimensions (WxDxH)(mm)	145x108x40
Weight (KG)(empty)	0.8
Package
Dimensions (WxDxH)(mm)	17513055
Weight(KG)	1.3
Power consumption
no-load	<12W
full-load(with PoE)	140W
Power supply	Dual DC 48~ 55V
PoE power budget	120W
Total output BTU (1000BTU/H=293W)	477.82
MTBF(H)	>800,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	128
MAC	8K
Buffer size(Mb)	4
Jumbo frame	9K
Total SVI	10
Indicator	Power, system, link/active

Gigabit Interface
RJ45	8 PoE+
SFP	2
Console (RJ45)	1
Switch Capacity / Backplane (Gbps)	56
Forwarding rate (Mpps)	15
Chassis
Dimensions (WxDxH)(mm)	165x130x65
Weight (KG)(empty)	1.1
Package
Dimensions (WxDxH)(mm)	24220786
Weight(KG)	1.6
Power consumption
no-load	<12W
full-load(with PoE)	260W
Power supply	Dual DC 48~ 55V
PoE power budget	240W
Total output BTU (1000BTU/H=293W)	887.37
MTBF(H)	>800,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	128
MAC	8K
Buffer size(Mb)	4
Jumbo frame	9K
Total SVI	10
Indicator	Power, system, link/active

Gigabit Interface
RJ45	8 PoE+ 2 Non-PoE
SFP	1
Console (RJ45)	1
Switch Capacity / Backplane (Gbps)	56
Forwarding rate (Mpps)	21
Chassis
Dimensions (WxDxH)(mm)	188x130x64
Weight (KG)(empty)	1.3
Package
Dimensions (WxDxH)(mm)	24220786
Weight(KG)	1.8
Power consumption
no-load	<15W
full-load(with PoE)	260W
Power supply	Dual DC 48~ 55V
PoE power budget	240W
Total output BTU (1000BTU/H=293W)	887.37
MTBF(H)	>800,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	128
MAC	8K
Buffer size(Mb)	4
Total SVI	10
Indicator	Power, system, link/active

Features

VLAN

4K VLAN entries

GVRP

QinQ

Private VLAN

IEEE 802.1Q VLAN tagging

Ring protection

802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)

BPDU protection, root protection and ring protection

EAPS

ERPS

Multicast

MVR

IGMP Snooping

IGMP Fast Leave

Multicast group policy and multicast number limit

IP routing: Default Gateway

DHCP

DHCP Client

DHCP Snooping

QoS

CAR traffic control

802.1P/DSCP priority remark

Multiple queuing algorithms such as SP, WRR or SP+WRR

IP ACL/ANY/VLAN/COS/

DSCP/IP Preference based QoS

Traffic supervision and traffic shaping

Drop,Redirect

Security features

Identification and filtering of L2/L3/L4-based ACL

Suppression of broadcast, multicast and unknown unicast packet

Port isolation

Port security, IP+MAC+port binding

DHCP sooping, DHCP option82

IEEE 802.1x authentication

Radius and TACACS+ authentication

Command line hierarchical protection

Reliability

Static/LACP

Ethernet OAM

ISSU

Backuplink

Management and maintenance

CLI, Console, Telnet, SSH 2.0

Zero Touch Provisioning (ZTP)

Web-GUI, HTTP/HTTPS

SNMP v1/v2/v3

Upload and download files through TFTP/FTP

Remote Network Monitoring (RMON )

IPv6

ICMPv6, DHCPv6, ACLv6, IPv6 Telnet

IPv6 Neighbor Discovery

Path MTU Discovery

MLD Snooping

ACL

L2/L3/L4 ACL

IPv4, IPv6 ACL

VLAN ACL

Certification: CE, FCC

Ordering Information

IES200-V25-P Series
IES200-V25-2S4P	4-Port Gigabit PoE+ 2-Port Gigabit SFP L2+ Managed PoE Industrial Switch (DC 48~55V redundant dual power input, 120W POE budget, operating temperature: -40~75°C; operating humidity 5%~95% non-condensing; IP40; DIN-rail installation)
IES200-V25-2S8P	8-Port Gigabit PoE+ 2-Port Gigabit SFP L2+ Managed PoE Industrial Switch (DC 48~55V redundant dual power input, 240W POE budget, operating temperature: -40~75°C; operating humidity 5%~95% non-condensing; IP40; DIN-rail installation)
IES200-V25-4S2T8P	8-Port Gigabit PoE+ 2-Port Gigabit RJ45 + 4-Port Gigabit SFP L2+ Managed PoE Industrial Switch (DC 48~55V redundant dual power input, 240W POE budget, operating temperature: -40~75°C; operating humidity 5%~95% non-condensing; IP40; DIN-rail installation)
