XPON Multi-service CATV ONT

BDCOM GP1702-2FC-S is a new generation smart ONT for integrated multi-service broadband access networks.

Highlight Features

Excellent Access Capacity

Secure Service Carrying Ability

High Service Control Capability

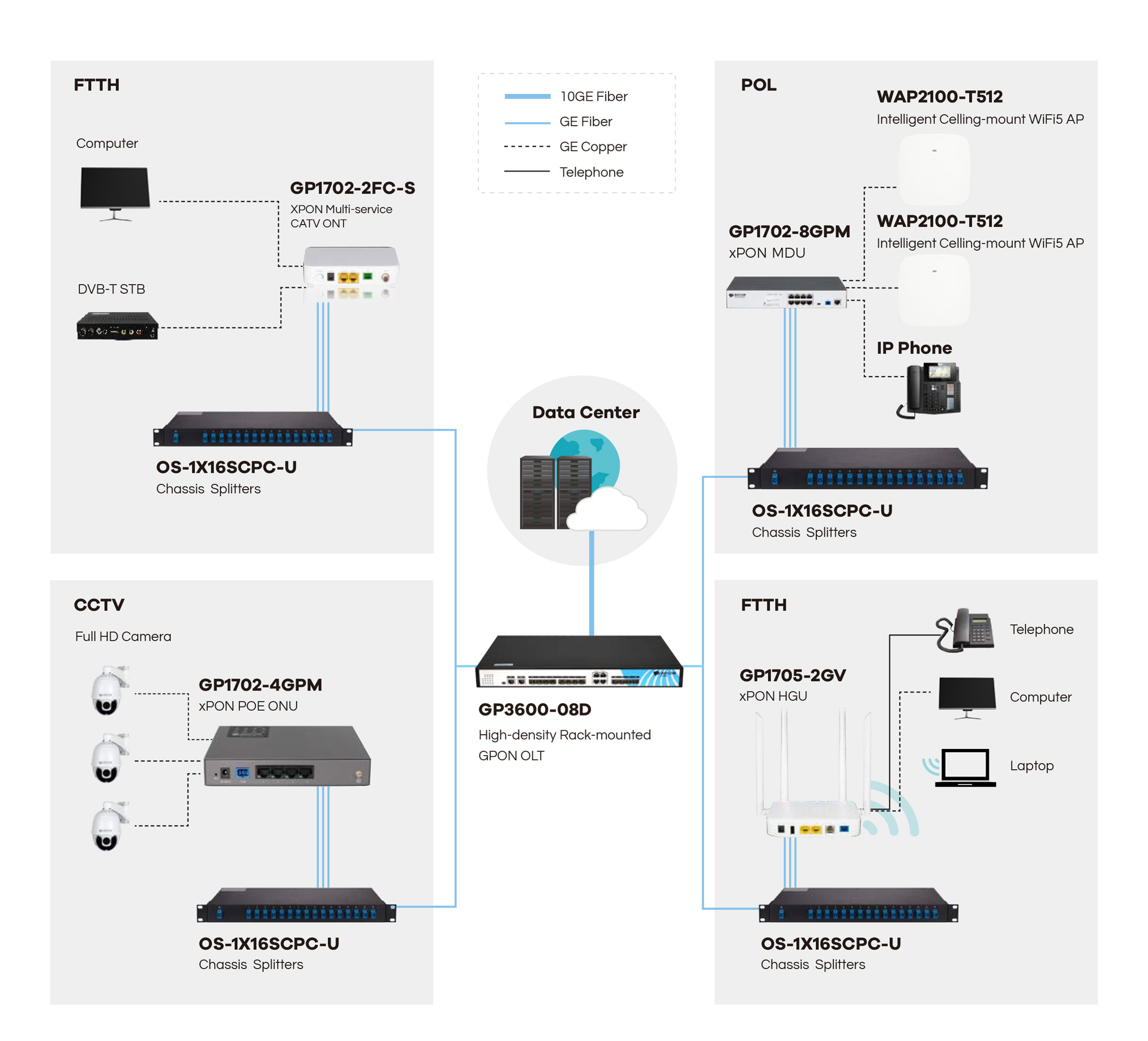

Typical Application

Technical Parameter

PON ports 1-Port SC/APC
UNI ports 1-Port Gigabit RJ45
1-Port 100M RJ45
1-Port RF(British system)
Optical power (TX power RX sensitive) 0.5~5dBm
-28dBm
AC adaptor
Input: 100-240V AC
Output: 12V/1A
Max. consumption (W) 10
Chassis
Dimensions (WxDxH mm) 139 x104 x 29
Weight (Kg) (empty) 0.2
Package
Dimensions (WxDxH mm) 277 x 176 x 38
Weight (Kg) 0.4
Operating
Temperature 0~45°C
Humidity 10%~85%(non-condensing)
Storage
Temperature -40°C~85°C
Humidity 5%~95%(non-condensing)
Parts Power adaptor

Features

Standards

ITU-T G.984/G.988,

IEEE802.3ah

GBT33845-2017, YD/T 1475-2006

IEEE 802.1Q, VLAN

IEEE 802.1w, RSTP

ITU-T Y.1291

VLAN

4K VLAN

Port based VLAN

IEEE 802.1Q VLAN

Tag/Transparent/Aggregation/Trunk/Translation mode VLAN

CTC2.0 defined VLAN

XPON Service

AES128 algorithm encryption

MAC/Loid/Hybrid authentication

QoS

Backpressure flow control (half-duplex)

IEEE 802.3x flow control (full duplex)

Against Head of Line mechanism

IEEE 802.1p, CoS

Four priority queues on each port

WR, SP and FIFO queue schedule algorithms

Port rate limit

SLA and DBA

Management

Management modes including

CLI, HTTP, SNMP and TELNET

Software upgrade through TFTP and WEB, OMCI, OAM,etc.

Local or server syslog

Network Security

MAC address number limit

MAC filter

Port protect

Multicast

IGMP-Snooping

CTC defined dynamic multicast function

MLD-Snooping

Multicast group limitation

Multicast fast-leave

Reliability

Loop detection

Dying-Gasp

TX/RX optical power alarm

Ordering Information

GP1702-2FC-S
GP1702-2FC-S xPON CATV ONU, 1-Port GPON/EPON (SC/APC), 1-Port Gigabit RJ45 + 1-Port 100M RJ45 + 1-Port RF, plastic casing, DC12V/1A power adaptor
