XG-PON WiFi6 CATV Home Gateway Unit(HGU)

BDCOM GP1806-4G series is an intelligent home gateway terminal product launched by BDCOM for multi-service converged networks. It integrates wireless and voice functionalities. It is compatible with the ITU-T G.987.3, G.988, G.989 standards, ensuring excellent interoperability and operability. It can achieve seamless interconnection with OLT from leading industry manufacturers.

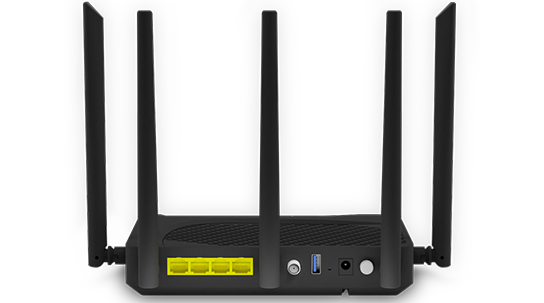

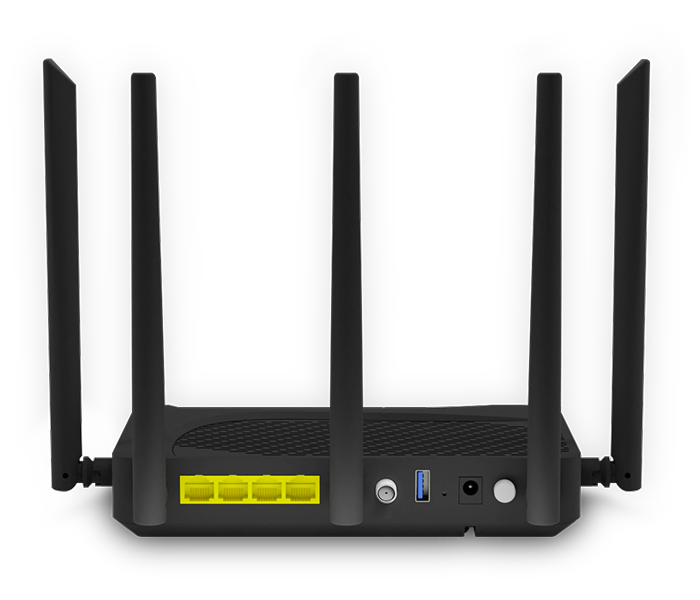

GP1806-4GCA

10Gbps downlink 2.5Gbps uplink

Multi-service design

The splitting ratio ups to 1:256

consult

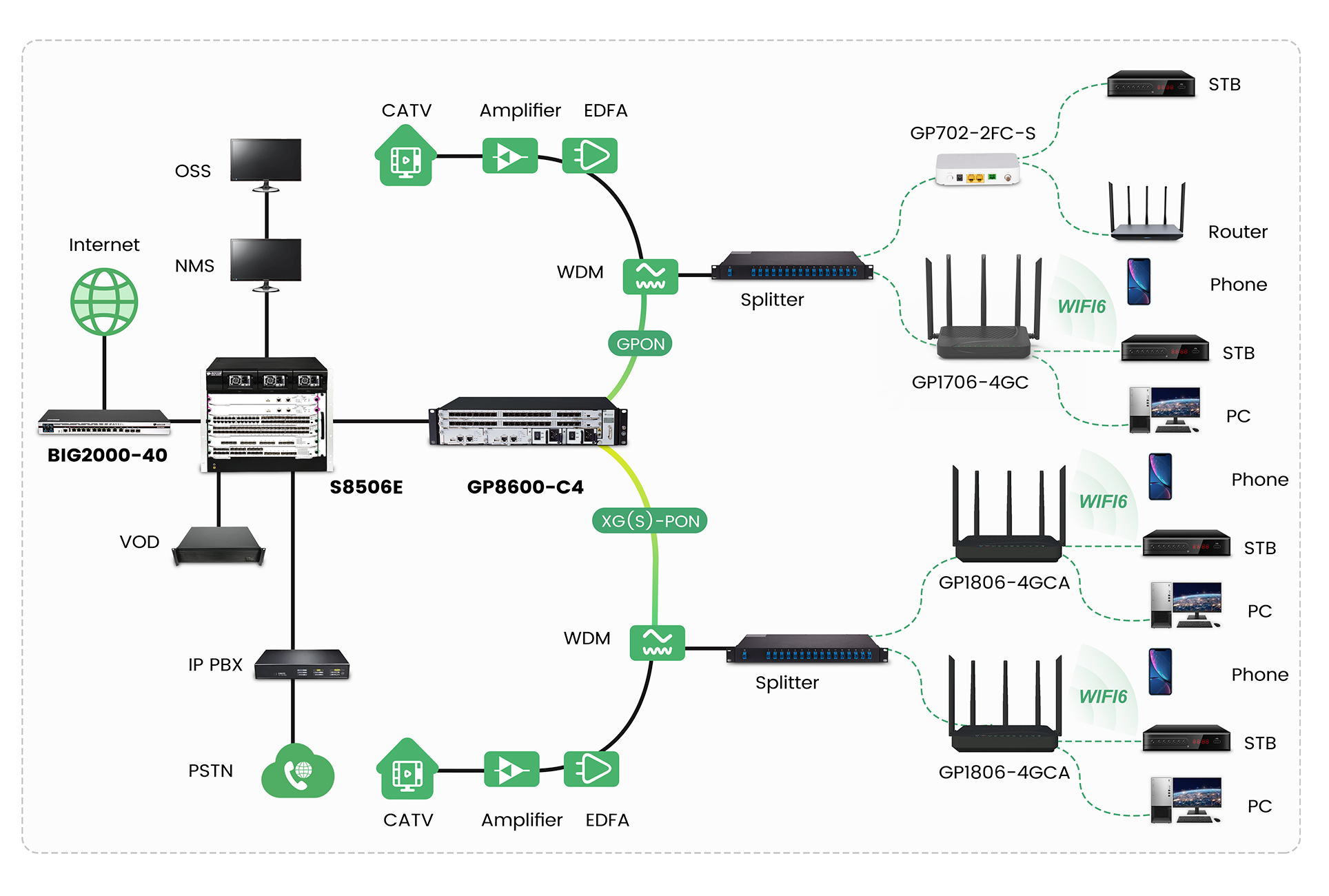

Typical Application

Technical Parameter

GP1806-4GCA
UNI port 4×GE
1×British RF
WiFi6 external 5 antennas
1 USB
PON port Transmission rate: Downlink 10Gbps/uplink 2.5Gbps Network Coverage Radius: 20 kilometers Receiver Sensitivity: ≤-28dBm
Transmit Optical Power: 0.5~5dBm
SC/APC
Standards ITU-T G.987.3, G.988, G.989
GB/T 39577-2020 10Gbit/s Passive Optical Networks (XG-PON)
Data Forwarding Routing Mode, Bridging Mode, and Routing+Bridging Hybrid Mode
DNS DNS Relay
DHCP DHCP server
VLAN Port-based VLAN
IEEE 802.1Q VLAN
Multicast IGMP Snooping, CTC-defined dynamic multicast, MLD Snooping, Full-Routing Multicast
VoIP -
CATV AGC: -10 ~ +2dBm;
Output level≥70dbuv
WiFi 802.11b/g/n/ac/ax
2x2 2.4GHz: 575Mbps
2x2 5GHz: 2400Mbps
Supports Multiple SSID and SSID hidden

Features

QoS

Backpressure Flow Control (Half-Duplex)

IEEE 802.3x Flow Control (Full-Duplex)

Preventing Head-of-Line Blocking

IEEE 802.1p, CoS

4 Priority Queues per Port

WR, SP, and FIFO

Port Rate Limiting

Reliability

Loop Detection

Dying-Gasp

Type B Dual Homing Protection

Management Configuration

HTTP, Telnet, TR069, OMCI

Software Upgrade through TFTP, WEB, HTTP, TR069, and OLT

Dimensions (WxDxH)

185*135*36mm (excluding antennas)

Heat dissipation

Extended use (24 hours) does not result in performance degradation or damage due to device overheating or deformation

Environment requirements

Operating environment: 0°C~45°C; 10%~90% non-condensing

Input rated voltage: DC12V/1.5A (external adapter)

Power: less than 20W

Security

Port MAC Address Limitation

Port Protection

Port Storm Suppression

Ordering Information

GP1806-4G series
GP1806-4GCA 10G WiFi ONU with 1-port XG-PON (SC/UPC), 4-port GE, 1-Port RF, 1 USB, external 5 antennas (WiFi6 3000M), plastic casing, DC 12V/1.5A external adapter.
