Enterprise-Grade Full-10G/100G Aggregation Switch

BDCOM 5800 full-10G series is ideal selection for service provider POP aggregation switching and enterprise core networks with exceptional capacity and stability

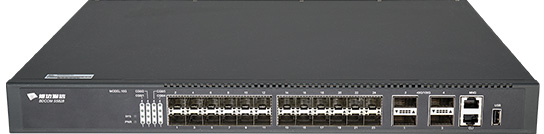

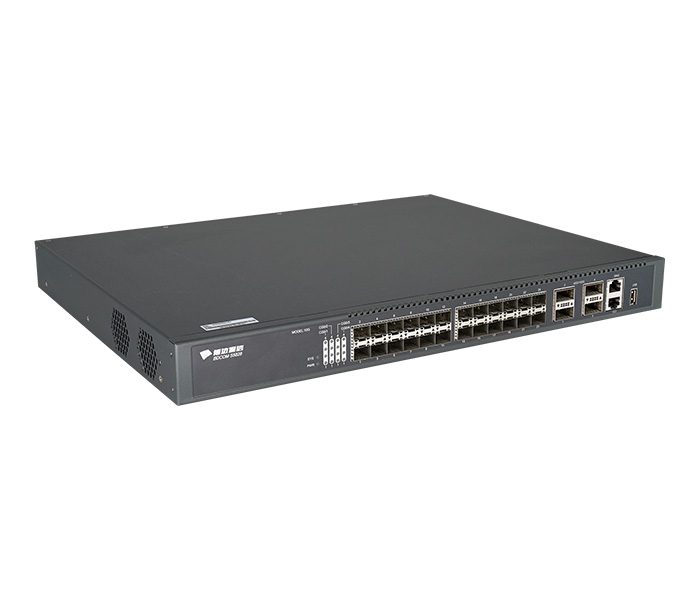

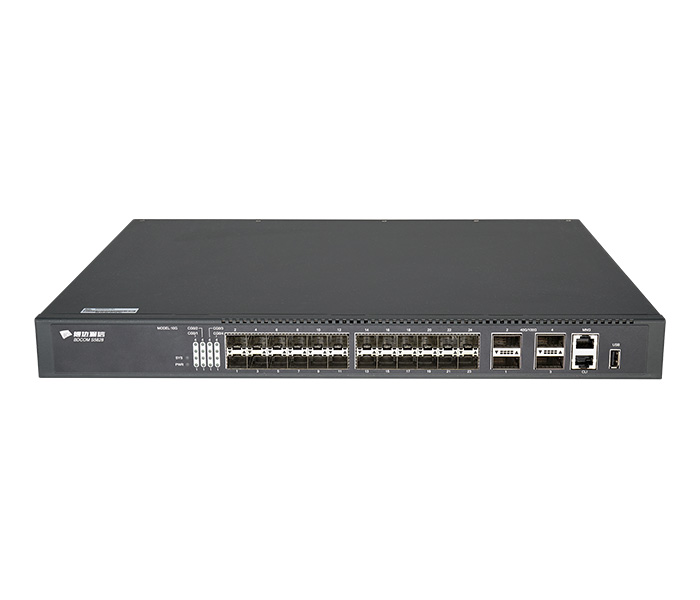

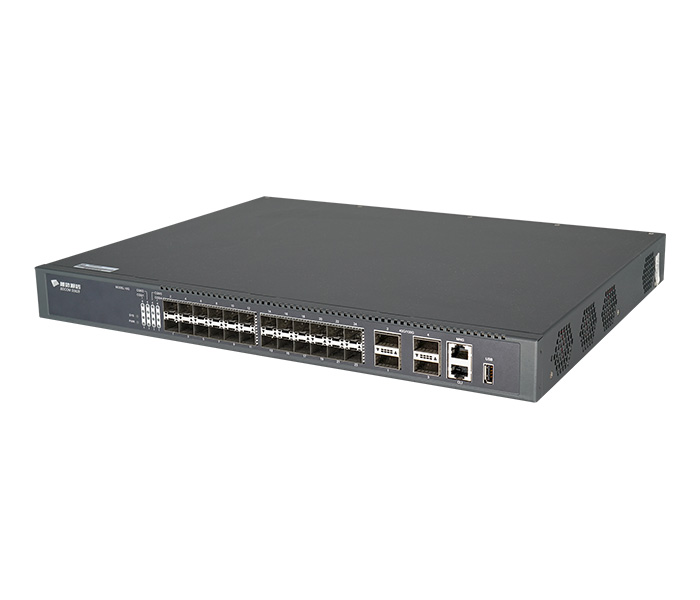

S5828

S5864HB

Highlight Features

Carrier-Level Aggregation Layer-3 Ethernet Switch Innovative BVSS

Data Center Level High-reliability

Rich Data Center Services

consult

Typical Application

Technical Parameter

S5828 S5864HB

Interface	24 10GE/GE SFP+ ports, 4 100GE/40GE QSFP28ports
Console	1 RJ45 console, 1 MGMT
Backplane	800Gbps
Forwarding rate	600Mpps
Chassis
Dimensions (WxDxH)(mm)	440x350x44
Weight (KG)(empty)	7.1
Package
Dimensions (WxDxH)(mm)	576x448x94
Weight(KG)	8.3
Power consumption
no-load	45W
full-load	70W
Power supply (hot-swap) AC: 100V-240V, 50Hz±10%	2
Power status monitoring	Support
Total output BTU (1000BTU/H=293W)	238.91
Fan number	4
Noise@25°C（dBA)	57
MTBF(H)	>200,000
Forwarding mode	Store-forward
Flash (MB)	64
DRAM (MB)	1024
MAC	32K
Jumbo frame	16K
Routing table
IPv4	16K
IPv6	12K
ARP table
IPv4	10K
IPv6	10K
Total SVI	1K

Interface	48 10GE/GE SFP+ ports, 2 40GE QSFP+ ports, 4 100GE/40GE QSFP28 ports
Console	1 RJ45 console, 1 MGMT
Backplane	1920Gbps
Forwarding rate	1440Mpps
Chassis
Dimensions (WxDxH)(mm)	442x404x44
Weight (KG)(empty)	8.8
Package
Dimensions (WxDxH)(mm)	616x488x140
Weight(KG)	10
Power consumption
no-load	102W
full-load	147W
Power supply (hot-swap) AC: 100V-240V, 50Hz±10%	2
Power status monitoring	Support
Total output BTU (1000BTU/H=293W)	501.71
Fan number	4
Noise@25°C（dBA)	57
MTBF(H)	>200,000
Forwarding mode	Store-forward
Flash (MB)	64
DRAM (MB)	1024
MAC	64K
Jumbo frame	16K
Routing table
IPv4	16K
IPv6	8K
ARP table
IPv4	16K
IPv6	2K
Total SVI	1K

Features

VLAN: 4K Active VLAN, QinQ & Selective QinQ, GVRP, Private VLAN

Spanning Tree

802.1D (STP)

802.1W (RSTP) and 802.1S (MSTP)

BPDU guard,root guard and loopback guard

Multicast

PIM-SM, PIM-DM,

IGMP v1/v2/v3,

IGMP Snooping,

IGMP Fast Leave,

MVR, IGMP filter

IPv4

Static routing, RIP v1/v2,

OSPF, BGP, PBR, ECMP

BFD for OSPF, BGP

IPv6

ICMPv6, DHCPv6, ACLv6 and IPv6 Telnet

IPv6 neighbor discovery, Path MTU discovery

MLD snooping

IPv6 Static Routing, RIPng, OSPFv3, BGP4+

Manual tunnel, ISATAP tunnel, 6 to 4 tunnel

MPLS: Multi-VRF

QoS

CAR, HQoS, MAC/IP/TCP/UDP/VLAN/COS/DSCP/TOS based QoS,

802.1P/DSCP priority re-labeling, SP, WRR, and “SP+WRR”, Tail-Drop,

WRED, flow monitoring and traffic shaping

Security

Port isolation, Port security, and “IP+MAC+port” binding, MAC sticky

DHCP Snooping and option 82, DAI & IP source guard, PPPoE+,

IEEE 802.1x, Radius and BDTacacs+ L2/L3/L4 ACL flow identification and filtrationAnti-attack from

DDoS, TCP’s SYN Flood, UDP Flood, etc.Broadcast/multicast/unknown

unicast storm-control

MD5, SHA-256, RSA-1024, AES256, etc.

Reliability

Static/LACP link aggregation,

Interface backup

BVSS virtual-stacking

EAPS and ERPS

URPF, LLDP

ISSU

VRRP

1+1 power backup

Management

Console, Telnet, SSH v1/2, HTTP/HTTPS

SNMP v1/v2/v3, RMON

TFTP, FTP, SFTP

NTP, SPAN, RSPAN

Environment

Operating temperature/humidity: 0℃ -50℃ ,10%-90% non-condensing

Storage temperature/humidity: -20℃ -70℃ , 5%-95% non-condensing

Certification: CE, FCC, ROHS

Ordering Information

S5800 series switches
S5828	Ethernet routing optical switch with 24 10GE ports+4 100G ports (1 console port, 1 outband port, 1 USB2.0, 24 10GE/GE SFP+ ports, 4 100GE/40GE QSFP28 ports(can expand to 4 10GE ports); 2 hot-swap power slots with dual AC220 power supplies; 4 fans; 1U, 19-inch rack-mounted installation)
S5864HB	Ethernet routing switch with 48 10GE ports, 2 40GE ports and 4 100GE ports (1 console port, 1 out-band port, 48 10GE/GE SFP+ ports, 2 40GE QSFP+ ports, 4 100GE (can expand to 4 10GE ports), 2 power slots with 2 hot-swap AC220V power supplies; 4 fan slots, including 4 fans; 1U, 19-inch rack-mounted installation)
