>Products>PON>ONU>Data ONU

xPON MDU(Multi-Dwelling Unit)

BDCOM GP1702 Series is a new generation smart MDU for integrated multi-service broadband access networks.

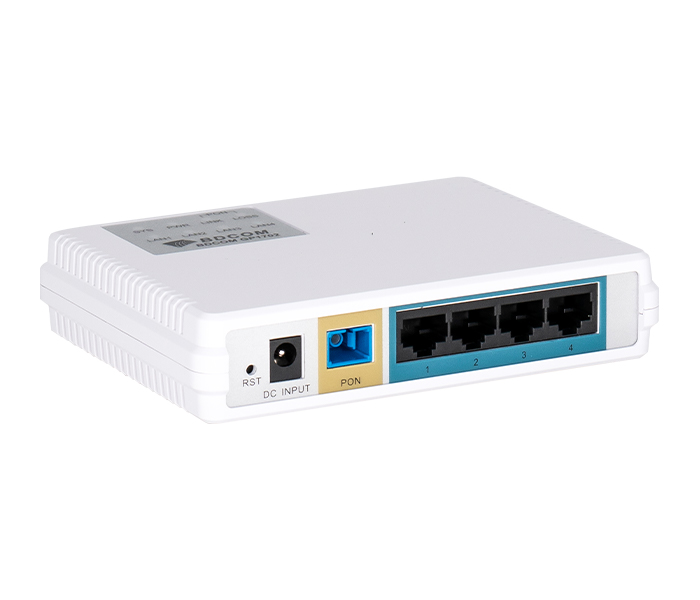

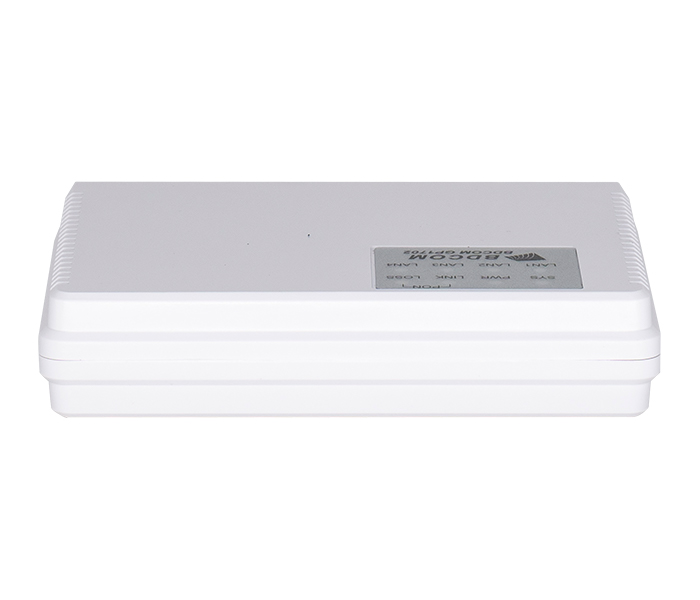

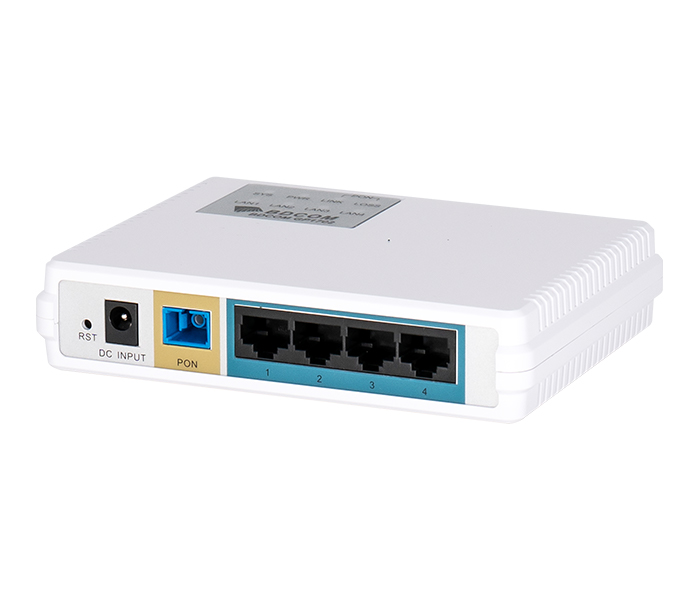

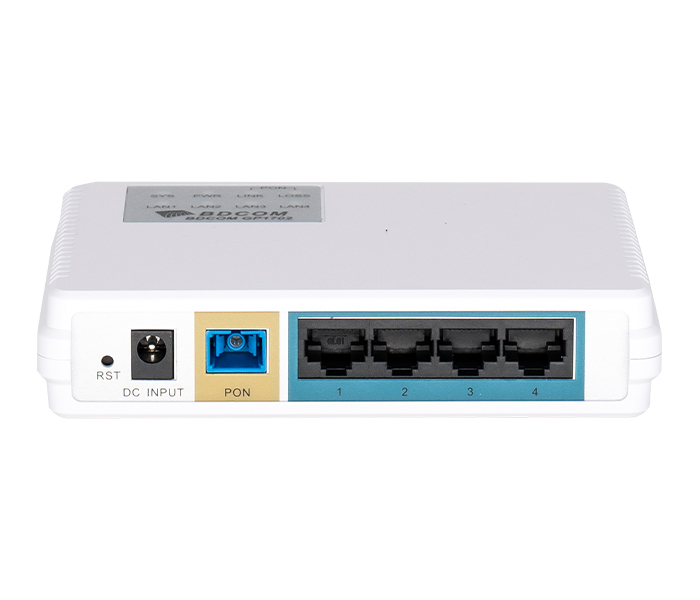

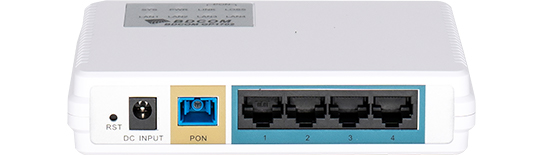

GP1702-4G

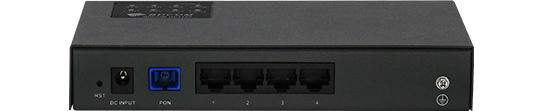

GP1702-4GM

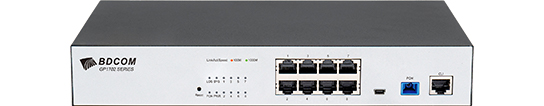

GP1702-8GM

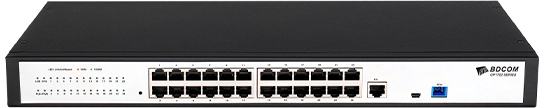

GP1702-24GM

Highlight Features

Excellent Access Capacity

Secure Service Carrying Ability

High Service Control Capability

consult

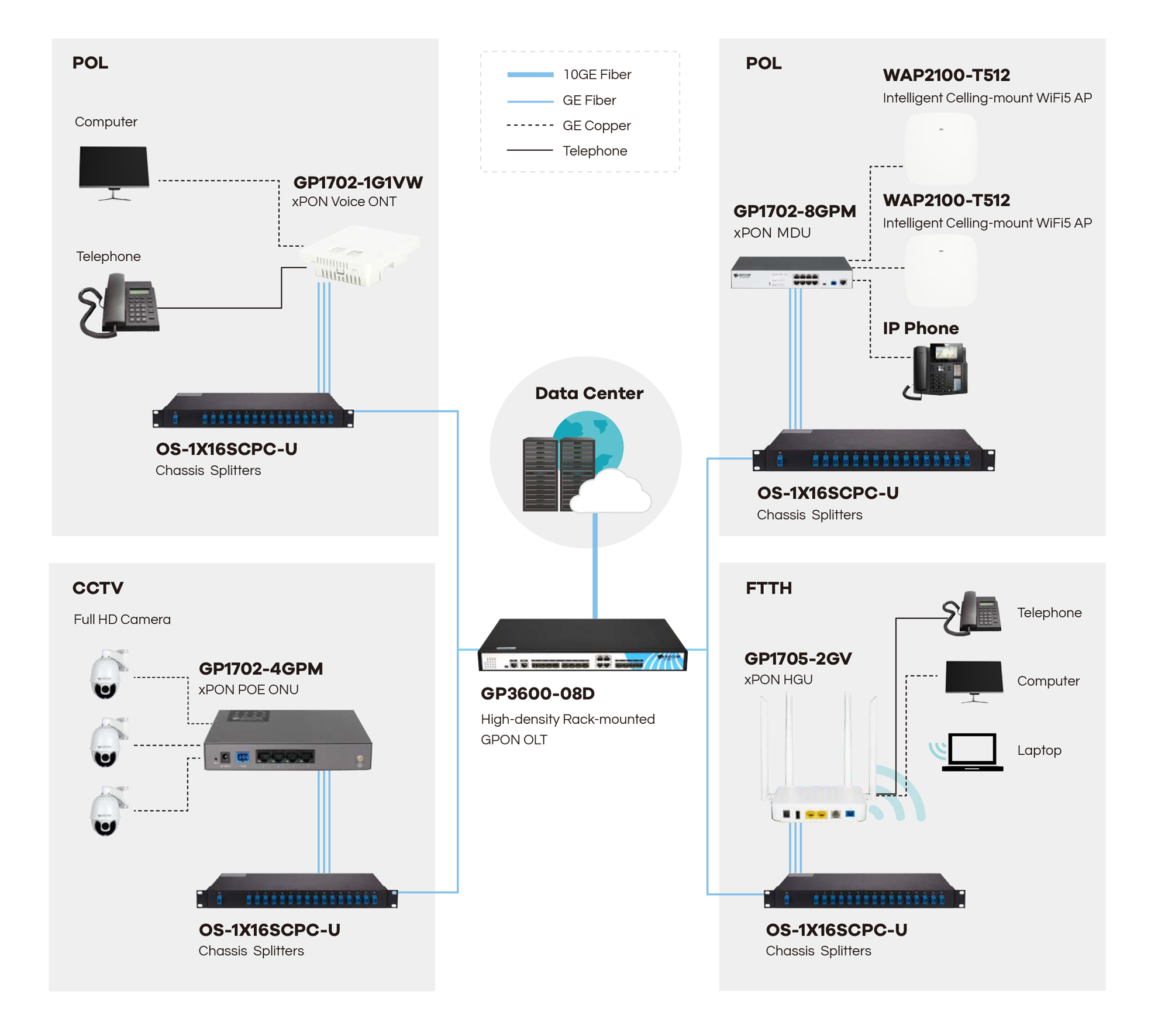

Typical Application

Technical Parameter

GP1702-4G GP1702-4GM GP1702-8GM GP1702-24GM

PON ports	1-Port SC/UPC
UNI ports	4-Port Gigabit RJ45
Optical power (TX power RX sensitive)	0.5~5dBm, -28dBm
Power supply	12V/1A
Max. consumption (W)	10
Chassis
Dimensions (WxDxH mm)	130 x 100 x 28
Weight (Kg) (empty)	0.2
Package
Dimensions (WxDxH mm)	231 x 126 x 42
Weight (Kg)	0.4
Operating
Temperature	0~45°C
Humidity	10%~85%(non-condensing)
Storage
Temperature	-40°C~85°C
Humidity	5%~95%(non-condensing)
Parts	Power adaptor/power cable

PON ports	1-Port SC/UPC
UNI ports	4-Port Gigabit RJ45
Optical power (TX power RX sensitive)	0.5~5dBm, -28dBm
Power supply	12V/1A
Max. consumption (W)	10
Chassis
Dimensions (WxDxH mm)	170 x 98 x 28
Weight (Kg) (empty)	0.4
Package
Dimensions (WxDxH mm)	270 x 117 x 48
Weight (Kg)	0.6
Operating
Temperature	0~45°C
Humidity	10%~85%(non-condensing)
Storage
Temperature	-40°C~85°C
Humidity	5%~95%(non-condensing)
Parts	Power adaptor/power cable

PON ports	1-Port SC/UPC
UNI ports	8-Port Gigabit RJ45
Optical power (TX power RX sensitive)	0.5~5dBm, -28dBm
Power supply	100-240V AC
Max. consumption (W)	15
Chassis
Dimensions (WxDxH mm)	280 x 180 x 44
Weight (Kg) (empty)	1.1
Package
Dimensions (WxDxH mm)	400 x 220 x 63
Weight (Kg)	1.7
Operating
Temperature	0~45°C
Humidity	10%~85%(non-condensing)
Storage
Temperature	-40°C~85°C
Humidity	5%~95%(non-condensing)
Parts	Power adaptor/power cable

PON ports	1-Port SC/UPC
UNI ports	24-Port Gigabit RJ45
Optical power (TX power RX sensitive)	0.5~5dBm, -28dBm
Power supply	100-240V AC
Max. consumption (W)	25
Chassis
Dimensions (WxDxH mm)	440 x 207 x 44
Weight (Kg) (empty)	2.1
Package
Dimensions (WxDxH mm)	500 x 323 x 75
Weight (Kg)	2.8
Operating
Temperature	0~45°C
Humidity	10%~85%(non-condensing)
Storage
Temperature	-40°C~85°C
Humidity	5%~95%(non-condensing)
Parts	Power adaptor/power cable

Features

Standards

ITU-T G.984/G.988,

IEEE802.3ah

GBT33845-2017, YD/T 1475-2006

IEEE 802.1Q, VLAN

IEEE 802.1w, RSTP

ITU-T Y.1291

VLAN

4K VLAN

Port based VLAN

IEEE 802.1Q VLAN

Tag/Transparent/Aggregation/Trunk/Translation mode VLAN

CTC2.0 defined VLAN

XPON Service

AES128 algorithm encryption

MAC/Loid/Hybrid authentication

QoS

Backpressure flow control (half-duplex)

IEEE 802.3x flow control (full duplex)

Against Head of Line mechanism

IEEE 802.1p, CoS

Four priority queues on each port

WR, SP and FIFO queue schedule algorithms

Port rate limit

SLA and DBA

Management

Management modes including

CLI, HTTP, SNMP and TELNET

Software upgrade through TFTP and WEB, OMCI, OAM,etc.

Local or server syslog

Network Security

MAC address number limit

MAC filter

Port protect

Multicast

IGMP-Snooping

CTC defined dynamic multicast function

MLD-Snooping

Multicast group limitation

Multicast fast-leave

Reliability

Loop detection

Dying-Gasp

TX/RX optical power alarm

Ordering Information

GP1702-MDU Series
GP1702-4G	xPON ONU, 1-Port GPON/EPON (SC/UPC), 4-Port Gigabit RJ45, plastic casing, DC12V/0.5A power adaptor
GP1702-4GM	xPON ONU, 1-Port GPON/EPON (SC/UPC), 4-Port Gigabit RJ45, metal casing, DC12V/0.5A power adaptor
GP1702-8GM	xPON MDU (Multi-Dwelling Unit), 1-Port GPON/EPON (SC/UPC), 8-Port Gigabit RJ45, metal casing, single AC-220V power supply
GP1702-24GM	xPON MDU(Multi-Dwelling Unit), 1-Port GPON/EPON (SC/UPC), 24-Port Gigabit RJ45, metal casing, single AC-220V power supply
